Connection schemes

BA-BAX SERIES

N°	Series	Speed	Brake	Terminal Box	Scheme
1	BA-BAX	Single	AC/DC	Single	Scheme
2	BA-BAX	Single	AC	Double	Scheme
3	BA-BAX	Single	DC	Double	Scheme
4	BAD	Double	AC	Double	Scheme
5	BAD	Double	DC	Double	Scheme
6	BADA	Double	AC	Double	Scheme
7	BADA	Double	DC	Double	Scheme
8	BAMP	Single	DC	Single	Scheme

BM-BMX SERIES

N°	Series	Speed	Brake	Terminal Box	Scheme
1	BM-BMX	Single	DC	Single	Scheme
2	BM-BMX	Single	DC	Double	Scheme
3	BMD	Double	DC	Double	Scheme
4	BMDA	Double	DC	Double	Scheme
5	BMMP	Single	DC	Single	Scheme

N°	Brake Type	Brake Connection	Motor Connection	Motor Rated Voltage	Brake Rated Voltage	Scheme
1	AC – 3 phases (BA(X) only)	Δ/Y (6w)	Δ/Y (6w)	265V/460V/60Hz, 330V/575V/60Hz, 220V/380V/60Hz,…	265V/460V/60Hz, 330V/575V/60Hz, 220V/380V/60Hz,…	Scheme
2	AC – 3 phases (BA(X) only)	Δ/Y (6w)	YY/Y (9w)	230V/460V/60Hz,…	230V/460V/60Hz,…	Scheme
3	Single phase rectified DC (BA(X) and BM(X))	Rectifier	Δ/Y (6w)	265V/460V/60Hz, 330V/575V/60Hz, 220V/380V/60Hz,…	1~110V, 1~230V,…	Scheme
4	Single phase rectified DC (BA(X) and BM(X))	Rectifier	YY/Y (9w)	230V/460V/60Hz,…	1~110V, 1~230V,…	Scheme
5	24V DC (BA(X) and BM(X))	DC voltage	Δ/Y (6w)	265V/460V/60Hz, 330V/575V/60Hz, 220V/380V/60Hz,…	24V DC	Scheme
6	24V DC (BA(X) and BM(X))	DC voltage	YY/Y (9w)	230V/460V/60Hz,…	24V DC	Scheme

SM-SMX Series

N°	Series	Fasi	Speed	Connection and Brake Power Supply	Scheme
1	SMX-SM	3-Ph	Single	Δ/Y (6 wires) 230/400V 50Hz, 265/460V 60Hz,  220/380V 60Hz, 208/360V 50Hz, 330/575V 60Hz, …	Scheme
2	SMX-SM	3-Ph	Single	YY/Y (9 wires) 230/460V 60Hz	Scheme
3	SMD	3-Ph	Double	Dhalander 400V 50Hz, 230V 50Hz, 220V 60Hz, …	Scheme
4	SMDA	3-Ph	Double	Two windings 400V 50Hz, 230V 50Hz, 220V 60Hz,…	Scheme
5	SMMP	1-Ph	Single	230V 50Hz, …	Scheme

Accessories

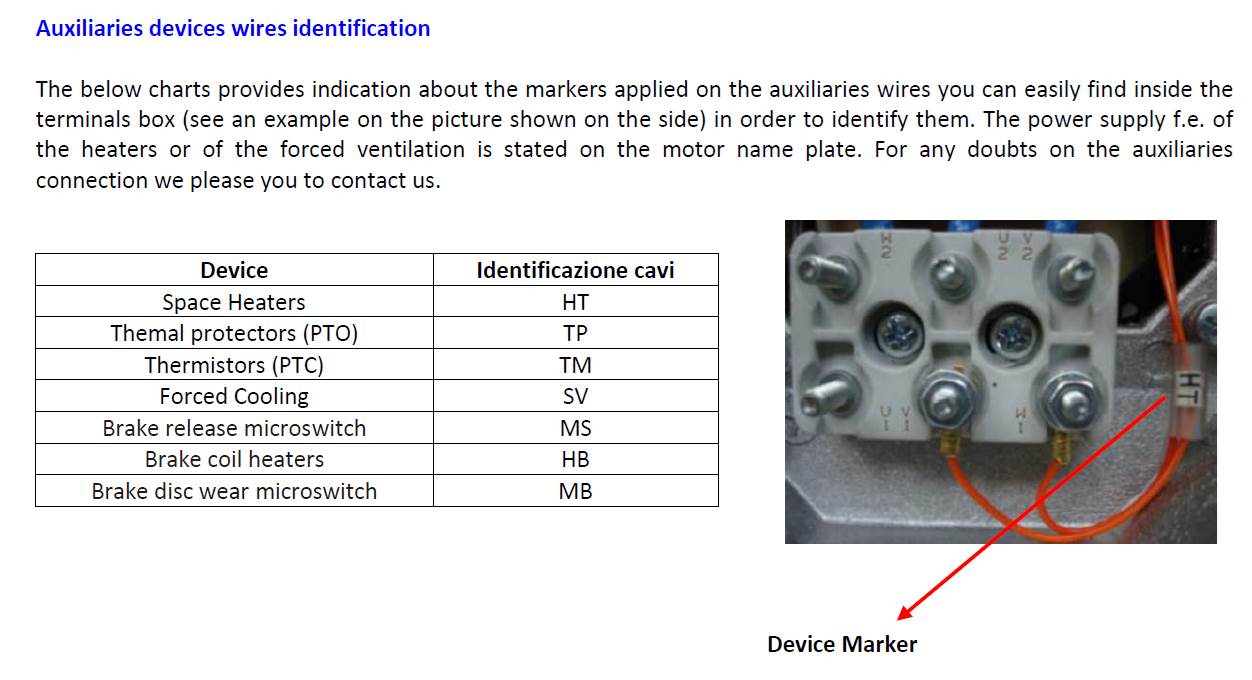

Auxiliaries devices wires identification
